cnc router with vacuum table 1200*1800*150mm

Place of Origin Shandong, China (Mainland)
Brand Name JCUT
Model Number 1218AV

Detailed Product Description

cnc router for engraving and cutting 1200*1800*150mm
cylindrical guideway,
XY-Rack, Z-ball screw driving mode,
Vacuum table

1218A yellow.jpg

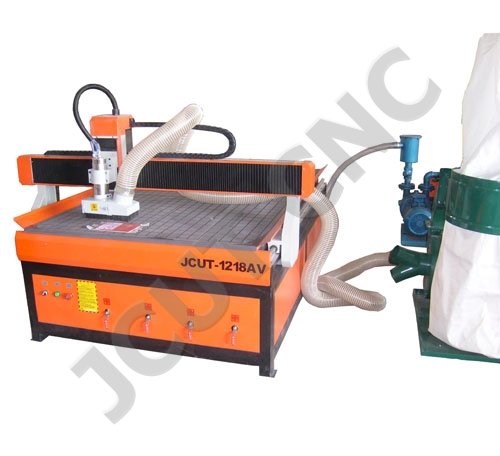

1218AV.jpg1218A with vacuum and dust.jpg

cnc router with vacuum table 1200*1800*150mm

JCUT-1218AV(47'' x 70.8'')


1) Machine body: whole cast iron

2) Guideway: XYZ-cylindrical guideway

3) Driving mode: XY-rack, Z-ball screw

4) Work dimensions: 1200mm x 1800mm x 150mm

5) Body dimensions: 1500mm x 2200mm x 1500mm

6) Z-axis working area: 150mm

7) Max. Feeding height: 100mm or bigger

8) Cut thickness of material: ≤40mm

9) Max. Speed: 6,000mm/min

10) Working speed: 0 - 4,000mm/min

11) Mechanical precision: 0.01mm

12) Software: type 3 software, Artcut software, Artcam software

13) Max. Power consumption: 1.8kW

14) Power source: AC220/50Hz (or 110v/60HZ)

15) Driver type: stepper motor (XY-85BYG, Z-57BYG motor)

16) Memory: without or (DSP)

17) Spindle: 1.5kW variable speed, water cooled motor (2.2kW or 3kW, or bigger)

18) Spindle speed: 0 - 24000rpm

19) Blade diameter: 3.175mm, 4mm, 6mm ( or 8mm,10mm,12mm, 12.7mm )

20) Control system: (NCSTUDIO) or DSP (USB interface)

21) Command: G code, u00, mmg, plt

22) Running circumstance temperature: 0 - 45 ° C

23) Relative humidity: 30% - 75%

24) Pack dimensions: 1700 x 2300 x 1600mm

25) Net weight: 800kg

26) Gross weight: 900kg


Can be used on advertisement engraving, advertisement cutting, stone processing cutting, Cu and Al molding cutting, mold manufacturing cutting, wood processing cutting, wood door manufacturing cutting, craft manufacturing cutting, light box cutting, building mold cutting, indoor decoration cutting, wave board processing cutting, light equipment mold processing cutting, sign and mark manufacturing cutting, Acryl board processing cutting, stamp cutting.


Key point:

Please kindly tell us your engraving or cutting materials, and materials’ size.

Then we can quickly check and recommend to you the right machine with right working area.


We send below parts for free:

Software in CD, Controlling Card (PCI card), Water Tank, Water Pump, Engraving Tools, Data Wire, Power Line, Brush, Spanner and Clamp.


The optional accessories:

1. Rotary axis

----For engraving on cylindrical shape materials. Please kindly tell us your cylindrical shape materials’ length and diameter. Then we can add right rotary axis to the machine.

2. Water cycling system (water sink on the working table)

----For engraving on stone or metal materials. It is used to down the spindle’s high temperature.

3. Vacuum table (contain vacuum pump and vacuum pipes)

----For fixing the materials on the working table, especially for bigger working table.

      After added vacuum table, the voltage will need to be 3 phase/380V.

4. Dust collector (contain dust collector pump and dust collector pipes)

----For sucking away the dusts, such as wood dusks and so on.

5. DSP controlling system

----USB interface, 128MB flash memory



We can send this machine to your port or door address by sea or by air. Do as you need.

If sending to your port, please tell us your port.

If sending to your door address, please tell us your address, and better with post code.



One year for machine

We supply online service 24 hours a day MSN, Skype, Yahoo, Gmail and so on.

You can also contact us by email, and we will reply in 24 hours, or by phone if urgently.
